RXR05 High Voltage Contactors 50A / 1500VDC
RXR05 High Voltage Contactors 50A / 1500VDC

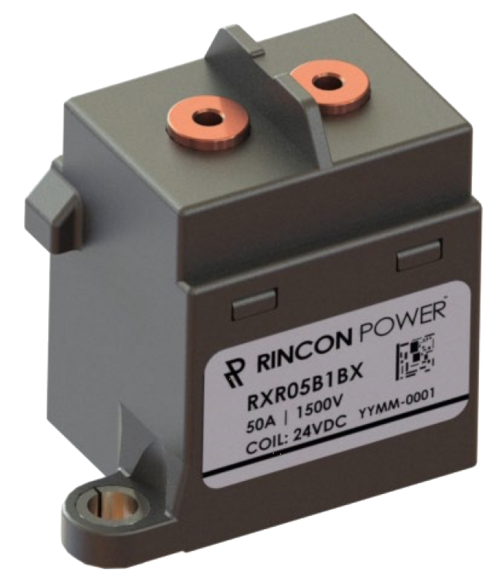

The Rincon Power RXR05 is a 50 A/1500 VDC high voltage contactor for PCB mounting in electric vehicles, battery systems and charging.
50 A DC continuous at up to 1500 VDC
Bidirectional, normally open (SPST-NO)
Metal-ceramic hermetic seal, IP69 rated
Low contact resistance over life, -40 to 85 °C
PCB mounting, coil 12 or 24 VDC
RoHS and IEC 60947-5-1 compliant
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | None |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 50 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 60 A DC |
| Mechanical cycles | 200.000 |
| Mounting | PCB |
| Sector | Vehicle Solutions |
| Temperature range | -40°C ~ 85°C |
| Max system voltage | 1500 VDC |
| Current direction | Bidirectional |
| Shock | 20 G |
| Weight | 170 g |
| Response time | 30 ms |
| Power consumption | 5,2 W |
