GV200 Contactor 12-800 VDC
GV200 Contactor 12-800 VDC

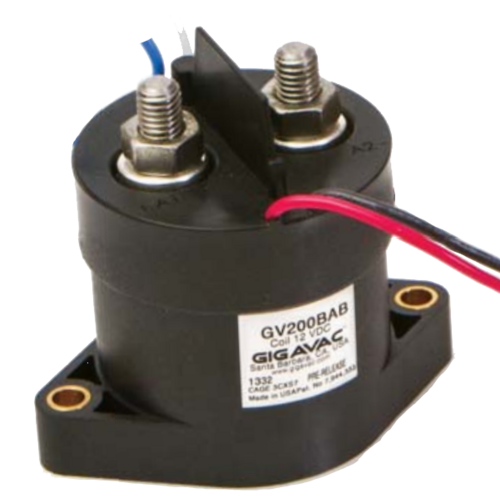

GV200 is a hermetically sealed 500 A contactor for vehicle DC systems from 12 to 800 VDC.
500 A continuous current, 1 million mechanical cycles
Sealed to IP67, operating range -55 °C to +85 °C
Designed to UL1604, SAE J1171 and ISO8846
Coils 12, 24 or 48 VDC, internal or external PWM
Built-in coil suppression, no external parts needed
NO auxiliary contact, upright mounting in any position, 380 g
UL and Class I Div 2 approvals
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 500 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Up-Right |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67 |
| Approvals | Class I Div 2, UL |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Weight | 0,38 kg |
| Shock | 25 G |
| Vibration | 25 G |
| Response time | 20 ms |
