GV350 Contactor / PWM / 500 A 1000 V dc
GV350 Contactor / PWM / 500 A 1000 V dc

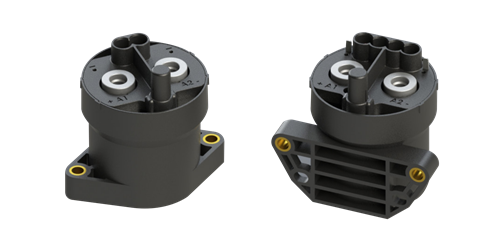

GV350 is a compact, hermetically sealed power contactor for vehicle DC systems up to 1000 VDC and 500 A.
500 A continuous current at up to 1000 VDC, unidirectional
Hermetically sealed and gas-filled, IP67 and IP69K
Operating temperature -55 °C to +85 °C
Coil 12 or 24 VDC, operated with external PWM
Side or upright mounting, approx. 76 x 81 mm, 0.39 kg
Optional NO auxiliary contact that follows the main contact position
Salt fog resistance according to MIL-STD-810
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 500 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Side, Up-Right |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 1000 VDC |
| Current direction | Unidirectional |
| Approvals | MIL-STD-810 |
| Weight | 0,39 kg |
| Shock | 50 G |
| Vibration | 25 G |
| Response time | 20 ms |
