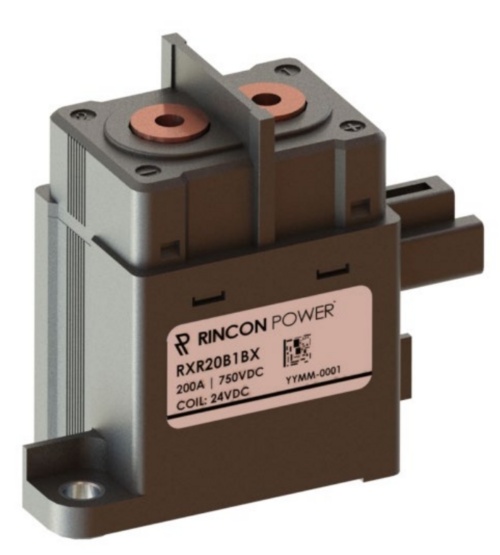

RXR20 High Voltage Contactor 200A 750VDC
RXR20 High Voltage Contactor 200A 750VDC
Metal-ceramic hermetic seal
High Temperature Performance
Low contact resistance over life
Meets RoHS 2011/65/EU
CHARACTERISTIC
Contact Arrangement Form X, SPST NO
Max Switching Voltage 750 VDC
Continuous Current (60mm2 conductor) 200A
Overload Current 30 seconds 600A
10 minutes 300A
Operating Temperature -40˚C to 85˚C
Ingress Protection Exceeds IP69, (Hermetically sealed)
Mechanical life 200,000 cycles
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | None |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Continuous current | 200 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 200 A DC |
| Mechanical cycles | 200.000 |
| Mounting | Up-Right |
| Sector | Vehicle Solutions |
| Contact config | Normally open (NO) |
| Max system voltage | 750 VDC |
| Temperature range | -40°C ~ 85°C |
| Current direction | Bidirectional |
| Shock | 20 G |
| Weight | 380 g |
| Response time | 30 ms |
| Power consumption | 6 W |
