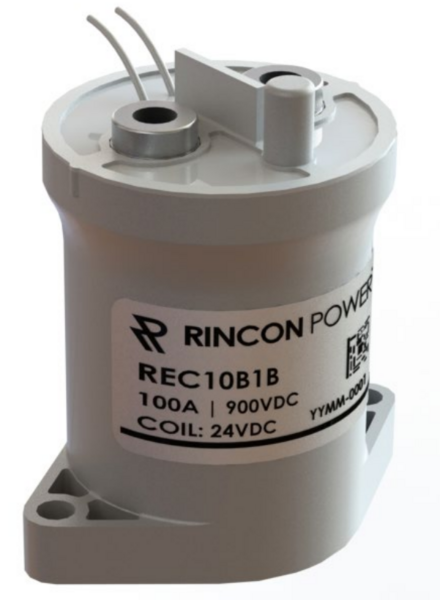

REC10 High Voltage Contactor 100A 1000VDC (REC15 150A)
REC10 High Voltage Contactor 100A 1000VDC (REC15 150A)
Hermetic seal with gas fill
Optional auxiliary contacts – for main position feedback
Meets RoHS 2011/65/EU
CE certified
IEC60947-5-1 compliant
CCC Certified
CHARACTERISTIC
Contact Arrangement Form X, SPST NO
Max Switching Voltage 1000VDC
Continuous Current (35mm2 conductor) 150A (13.3mm2 conductor 100A)
Overload Current 30 seconds 500A
3 Minutes 200A
Operating Temperature -40˚C to 85˚C
Ingress Protection Exceeds IP69, (Hermetically sealed)
Mechanical life 500,000
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO), SPST |
| Continuous current | 150 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 100 A DC |
| Mechanical cycles | 500.000 |
| Mounting | Side |
| Sector | Vehicle Solutions |
| Max system voltage | 1000 VDC |
| Temperature range | -40°C ~ 85°C |
| Current direction | Bidirectional, Unidirectional |
| Approvals | UL |
| Shock | 20 G |
| Response time | 25 ms |
| Weight | 190 g |
| Power consumption | 6 W |
