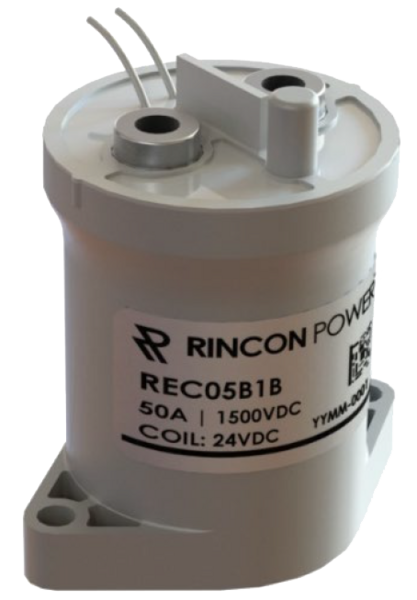

REC05 High Voltage Contactors 50A / 1500VDC (REC06 60A)
REC05 High Voltage Contactors 50A / 1500VDC (REC06 60A)
The Rincon Power REC05 is a 50 A/1500 VDC high voltage contactor for electric vehicles, battery systems and charging, with REC06 at 60 A.
50 A DC continuous at up to 1500 VDC
REC06 version rated 60 A
Gas-filled hermetic seal, IP69 rated
Side mounting, coil 12, 24 or 48 VDC
Optional auxiliary contact for position feedback
CE, CCC, RoHS and IEC 60947-5-1
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO), SPST |
| Continuous current | 50 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 50 A DC |
| Mechanical cycles | 200.000 |
| Mounting | Side |
| Sector | Vehicle Solutions |
| Temperature range | -40°C ~ 85°C |
| Max system voltage | 1500 VDC |
| Current direction | Bidirectional, Unidirectional |
| Shock | 20 G |
| Response time | 25 ms |
| Weight | 190 g |
| Power consumption | 6 W |
