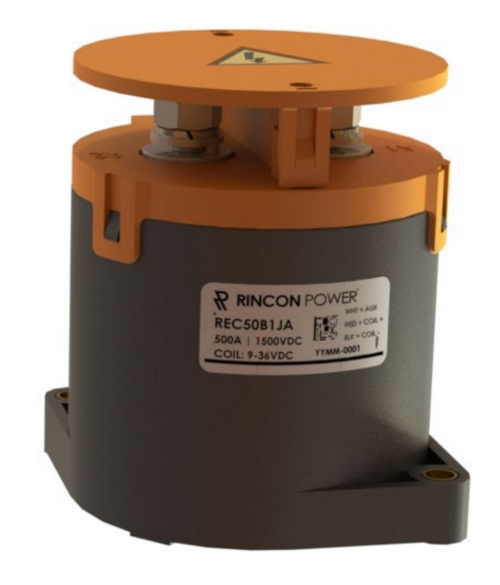

REC50 High Voltage Contactor 500A 1500VDC
REC50 High Voltage Contactor 500A 1500VDC
Hermetic seal with gas fill
Auxiliary contacts – for main position feedback
Integrated coil economizer to reduce coil holding power
Meets RoHS 2011/65/EU
IEC60947-5-1 compliant
Contact Arrangement Form X, SPST NO
Max Switching Voltage 1500VDC
Continuous Current (250mm2 conductor) 500A
Overload Current 1 minute 1,000A
30 seconds 2,000A
Operating Temperature -40˚C to 85˚C
Ingress Protection Exceeds IP69, (Hermetically sealed)
Mechanical life 200,000
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12–36 VDC |
| Contact config | Normally open (NO), SPST |
| Continuous current | 500 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 1000 A DC |
| Mechanical cycles | 200.000 |
| Mounting | Up-Right |
| Sector | Vehicle Solutions |
| Temperature range | -40°C ~ 85°C |
| Max system voltage | 1500 VDC |
| Current direction | Bidirectional |
| Approvals | UL |
| Shock | 20 G |
| Response time | 40 ms |
| Weight | 1,18 kg |
