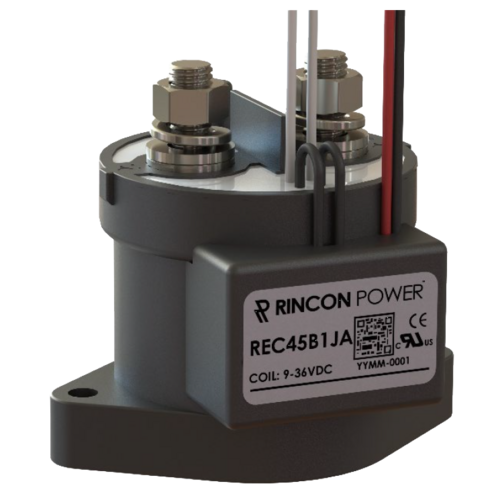

REC45 Hermetically Sealed Contactor 500A / 1000VDC
REC45 Hermetically Sealed Contactor 500A / 1000VDC
Hermetic seal with gas fill
Optional auxiliary contacts – for main position feedback
Integrated coil economizer to reduce coil holding power
Meets RoHS 2011/65/EU
CE certified. UL recognized (File E536110).
Please refer to UL file for specific part numbers that are recognized.
CHARACTERISTIC
Contact Arrangement Form X, SPST NO
Max Switching Voltage 1000VDC
Continuous Current (2x127mm2 conductor) 500A
Overload Current 1 minute 1,000A
5 Minutes 650A
Operating Temperature -40˚C to 85˚C
Ingress Protection Exceeds IP69, (Hermetically sealed)
Mechanical life 500,000
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally closed (NC), Normally open (NO), Optional |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 9–36 VDC |
| Contact config | Normally open (NO), SPST |
| Continuous current | 500 A DC |
| IP Classification | Hermetic, IP69 |
| Max current | 300 A DC |
| Mechanical cycles | 500.000 |
| Mounting | Up-Right |
| Sector | Vehicle Solutions |
| Temperature range | -40°C ~ 85°C |
| Max system voltage | 1000 VDC |
| Current direction | Bidirectional, Unidirectional |
| Approvals | UL |
| Shock | 20 G |
| Response time | 25 ms |
| Weight | 385 g |
