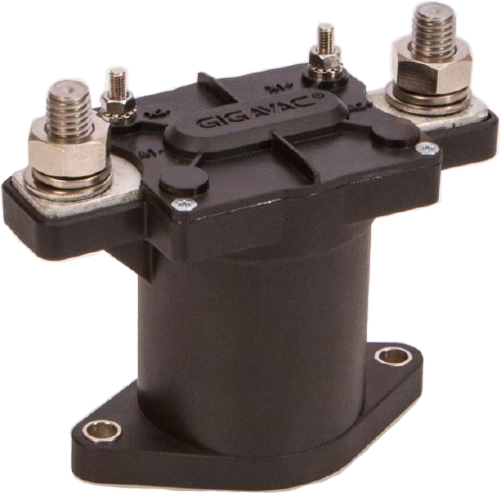

GX24 standup mount Contactor
GX24 standup mount Contactor
GX24 is an upright-mount industrial contactor from Gigavac built on EPIC™ ceramic technology, for vehicle and energy systems from 12 to 800 VDC.
400 A continuous current, 12–800 VDC system voltage
Housing handles 150 °C without melting or discolouring
Hermetic, IP67 and IP69K, -55 °C to +85 °C
Protection against ignition to SAE J1171 and ISO8846
Coil 12, 24 or 48 VDC with built-in suppression
Upright mounting, stainless steel hardware, weight 0.55 kg
Class I Div 2 (UL1604) and MIL-STD-810
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 400 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Up-Right |
| Sector | Infrastructure & Energy, Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Approvals | Class I Div 2, MIL-STD-810 |
| Weight | 0,55 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 20 ms |
