GX46 bottom mount busbar Contactor
GX46 bottom mount busbar Contactor

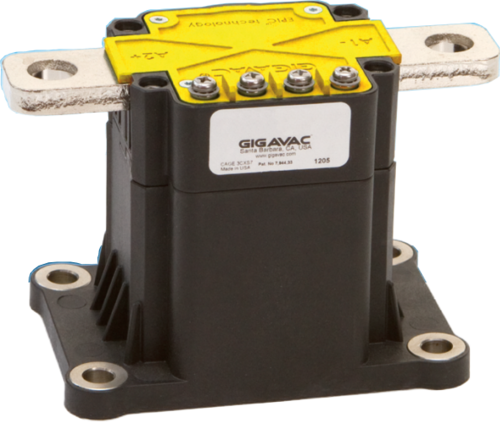

GX46 is a hermetically sealed EPIC™ ceramic contactor for bottom mounting with busbar connection, used in 12–800 VDC vehicle and energy systems.
600 A continuous at up to 800 VDC
Hermetic, IP67 and IP69K, -55 °C to +85 °C
Housing withstands 150 °C without melting or discolouring
12, 24 or 48 VDC coil with built-in suppression
NO auxiliary contact, stainless steel mounting details, 960 g
Class I Div 2, MIL-STD-810, UL1604, SAE J1171, ISO8846
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 600 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Up-Right |
| Sector | Infrastructure & Energy, Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Approvals | Class I Div 2, MIL-STD-810 |
| Weight | 0,96 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 20 ms |
