GX16 chassis mount Contactor
GX16 chassis mount Contactor

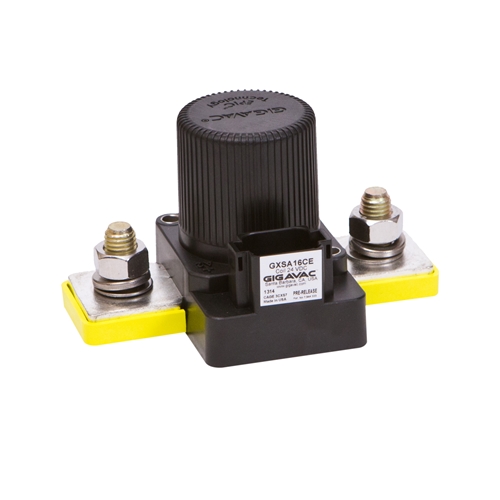

GX16 is a chassis-mount 600 A industrial contactor for DC systems up to 800 VDC, with power terminals at chassis level.
600 A continuous current, 1 million mechanical cycles
No special cables, busbars or lugs needed
Hermetic EPIC® seal rated to 175 °C
IP67 and IP69K, -55 °C to +85 °C
12, 24 or 48 VDC coil with built-in suppression
Stainless steel hardware, mounts in any position
Class I Div 2 and MIL-STD-810
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 600 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Chassis |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Approvals | Class I Div 2, MIL-STD-810 |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Weight | 0,9 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 20 ms |
