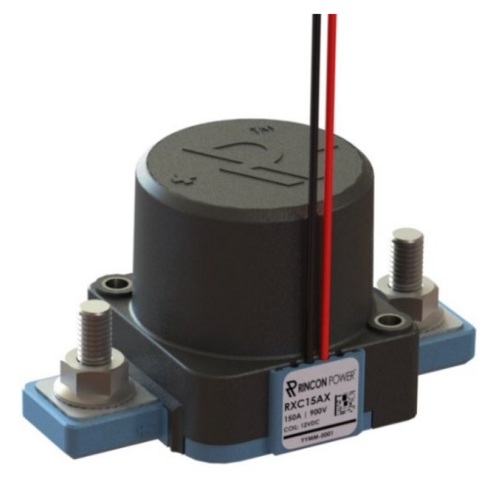

RXC15 High Voltage Contactor 225A+
RXC15 High Voltage Contactor 225A+
SPST Normally Open High Voltage Contactors
Hermetic seal with gas fill
Optional auxiliary contacts – for main position feedback
High temperature performance
Meets RoHS 2011/65/EU
Designed and Assembled in US
Max Switching Voltage 1000 VDC
Continuous Current (67mm2 conductor) 300A
Overload Current 3 minutes 500A
30 seconds 800A
Max Short Circuit Current – 1 second 1,500 A
Operating Temperature -45˚C to 100˚C (175˚C max terminal temperature)
Ingress Protection Exceeds IP69, (Hermetically sealed)
Mechanical life 300,000
Additional information
| Added function | None |
|---|---|
| Auxilary contact | Normally open (NO) |
| Coil Voltage | 12VDC, 24VDC |
| Contact config | Normally open (NO) |
| Continuous current | 225A |
| IP Classification | IP69K |
| Max current | 1500A |
| Mechanical cycles | 300000 |
| Mounting | PCB, Up-Right |
| Sector | Vehicle Solutions |
