GXL14 bi-stable (latching) Contactor
GXL14 bi-stable (latching) Contactor

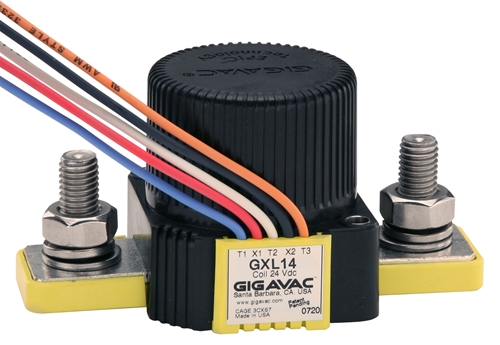

GXL14 is the bi-stable latching version of the Gigavac GX14 contactor, for vehicle DC systems up to 800 VDC and 400 A.
400 A continuous current, max system voltage 800 VDC
Hermetic EPIC® seal rated to 175 °C, IP67 and IP69K
Operating temperature -55 °C to +85 °C
Latching coil 12 or 24 VDC, no hold power required
UL508 sized chassis-level power terminals, stainless steel hardware
Built-in coil suppression and NO auxiliary contact
Class I Div 2 (UL1604) and MIL-STD-810
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 400 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Chassis |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Approvals | Class I Div 2, MIL-STD-810 |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Weight | 0,5 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 20 ms |
