GX12 chassis mount Contactor
GX12 chassis mount Contactor

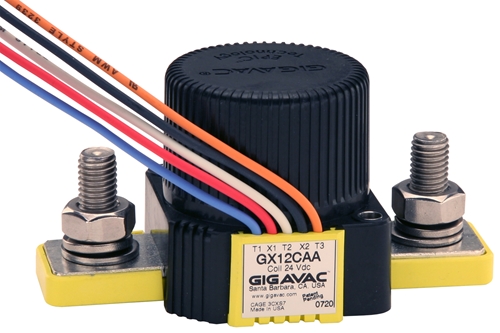

GX12 is a chassis mount industrial contactor from Gigavac based on EPIC™ ceramic technology, for 12–800 VDC vehicle systems up to 375 A.
375 A continuous current, max system voltage 800 VDC
Housing withstands 150 °C without melting or discolouring
Hermetic, IP67 and IP69K, -55 °C to +85 °C
Ignition protection to SAE J1171 and ISO8846
Coil 12, 24, 48, 72 or 120 VDC, or 120/240 VAC
Chassis mounting, stainless steel hardware, NO auxiliary contact
Class I Div 2 (UL1604) and MIL-STD-810
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 120 VAC, 120 VDC, 24 VDC, 240 VAC, 48 VDC, 72 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 375 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Chassis |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Approvals | Class I Div 2, MIL-STD-810 |
| Weight | 0,5 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 30 ms |
