GX23 standup mount Contactor
GX23 standup mount Contactor

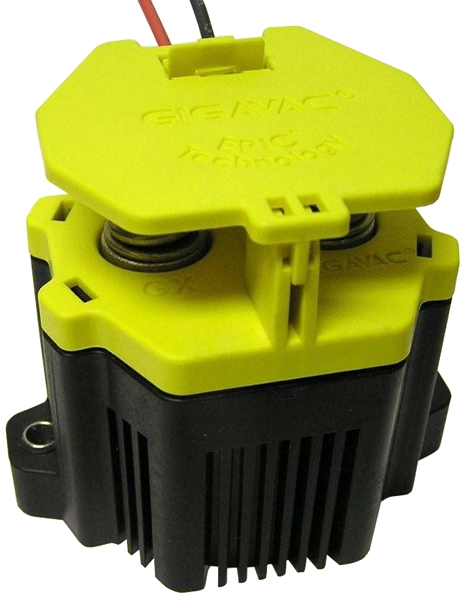

GX23 is a standup-mount 400 A contactor for vehicle DC systems up to 800 VDC, with an EPIC® ceramic-to-metal hermetic seal.
400 A continuous current, 1 million mechanical cycles
Seal rated to 175 °C reduces fire risk at overcurrent
IP67 and IP69K, operating range -55 °C to +85 °C
Dual coils 12, 24 or 48 VDC, no exposed electronics
Built-in coil suppression and removable terminal safety cover
NO auxiliary contact and upright mounting
UL, Class I Div 2, MIL-STD-810, RoHS compliant
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 400 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Up-Right |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Approvals | Class I Div 2, MIL-STD-810, UL |
| Weight | 0,44 kg |
| Shock | 20 G |
| Vibration | 15 G |
| Response time | 20 ms |
