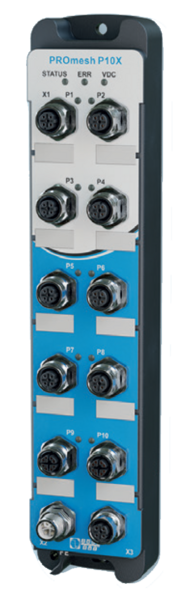

PROmesh P10X Diagnostic Switch
PROmesh P10X Diagnostic Switch
The Indu-Sol PROmesh P10X is an IP67 managed diagnostic switch with M12 ports for PROFINET and EtherNet/IP networks in harsh environments.
8 x 100 Mbit/s and 2 x 1 Gbit/s M12 X-coded ports
IP67 housing for wall mounting
Monitoring of line, EMC, 24 V and temperature
PROFINET Conformance Class B, Netload Class III
MRP and RSTP redundancy, QoS with 8 queues
UL/CSA, CE and UKCA, -40 to +75 °C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| IP Classification | IP67 |
|---|---|
| Number of ports | 10 |
| Type of switch | Gigabit |
| Mounting | Wall, Wallmount |
| Temperature range | -40°C ~ 75°C |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Supply voltage | 12–48 VDC |
| Dimensions | 60 x 284 x 28 mm |
| Weight | 0,85 kg |
| Fieldbus/Interface | Ethernet, Profinet |
