EDS-4008 Series
EDS-4008 Series

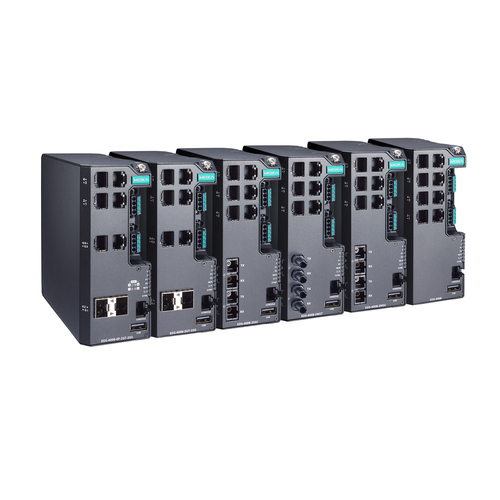

The Moxa EDS-4008 Series is a compact managed Ethernet switch for factory automation, energy and hazardous-location networks.
8 ports, with up to 2 SFP slots and 4 PoE ports
IEEE 802.3bt PoE up to 90 W per port, 240 W budget
Turbo Ring and Turbo Chain with recovery under 20 ms
Developed to IEC 62443-4-1, compliant with IEC 62443-4-2
-40 to 75 °C operating temperature, IP40 housing
DC and AC power options, DIN rail or wall mounting
ATEX, IECEx, Class I Div 2, DNV, IEC 61850-3, IEEE 1613
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
|---|---|
| Temperature range | -40°C ~ 75°C |
| Supply voltage | 12–57 VDC, 44–57 VDC, 85–264 VAC, 88–300 VDC, 9,6–60 VDC |
| IP Classification | IP40 |
| Mounting | DIN rail, Wall |
| Dimensions | 55 x 140 x 120 mm, 55 x 140 x 122,5 mm, 55 x 140 x 132 mm |
| Weight | 795 g, 886 g |
| Power consumption | 15,84 W |
| Number of ports | 8 |
| Digital inputs | 1 |
| Fieldbus/Interface | Ethernet |
| Approvals | ATEX, Class I Div 2, DNV, IEC 61850-3, IEC 62443-4-2, IECEx, IEEE 1613, UL |
| MTBF | 1.121.399 h, 492.582 h |
| PoE ports | 4 |
| PoE budget | 240 W |
| SFP ports | 2 |
