EDS-518E – Series
EDS-518E – Series

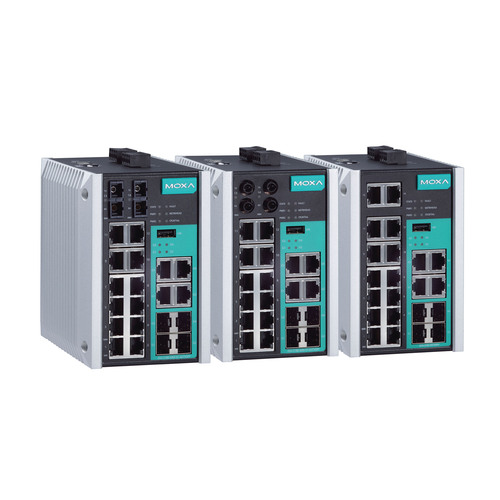

The Moxa EDS-518E Series is a compact 18-port Layer 2 managed Ethernet switch for redundant industrial network backbones.
4 Gigabit combo ports plus 14 Fast Ethernet ports
Copper and fiber port combinations, RJ45 or SFP
Turbo Ring and Turbo Chain under 20 ms, RSTP/STP, MSTP
RADIUS, TACACS+, IEEE 802.1X, HTTPS, SSH and IEC 62443 security
EtherNet/IP, PROFINET and Modbus TCP for device monitoring
Operating temperature -40 to 75 °C, 9.6–60 VDC input
ATEX, Class I Division 2, DNV, IEC 61850-3 and IEEE 1613
Replaces EDS-516A and EDS-518A
Moxa recommends the EDS-518E as the replacement for the EDS-516A and EDS-518A – last order date 30 June 2027.
4 Gigabit combo ports (EDS-516A: none, EDS-518A: 2)
Redundant power input 12/24/48/-48 VDC (previously 24 VDC)
Reset button and more approvals: IEC 61850-3, IEEE 1613, NEMA TS2, DNV, LR, ABS, NK
Same 94 x 135 mm front, fibre models with multi-mode SC/ST or single-mode SC
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| Type of switch | Layer 2 |
|---|---|
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Temperature range | -40°C ~ 75°C |
| Supply voltage | 9,6–60 VDC |
| IP Classification | IP30 |
| Mounting | DIN rail, Wall |
| Dimensions | 94 x 135 x 137 mm |
| Weight | 1,518 kg |
| Number of ports | 18 |
| Digital inputs | 1 |
| Fieldbus/Interface | Ethernet, Ethernet/IP, Modbus, Profinet |
| Approvals | ATEX, Class I Div 2, DNV, IEC 61850-3, IEEE 1613, UL |
| MTBF | 723.953 h |
