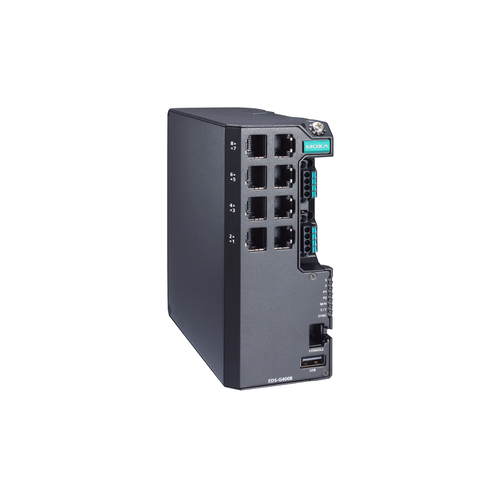

EDS-G4008 Series
EDS-G4008 Series
The EDS-G4008 Series is equipped with 8 Gigabit Ethernet ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Features and Benefits
Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| Type of switch | Layer 2 |
|---|---|
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Temperature range | -40°C ~ 75°C |
| Supply voltage | 85–264 VAC, 88–300 VDC, 9,6–60 VDC |
| IP Classification | IP40 |
| Mounting | DIN rail, Wall |
| Dimensions | 55 x 140 x 120 mm |
| Weight | 859,5 g |
| Power consumption | 10,73 W |
| Number of ports | 8 |
| Digital inputs | 1 |
| Fieldbus/Interface | Ethernet, Ethernet/IP, Modbus, Profinet |
| Approvals | ATEX, Class I Div 2, DNV, IEC 61850-3, IEC 62443-4-2, IECEx, IEEE 1613, UL |
| MTBF | 1.098.085 h, 511.204 h |
