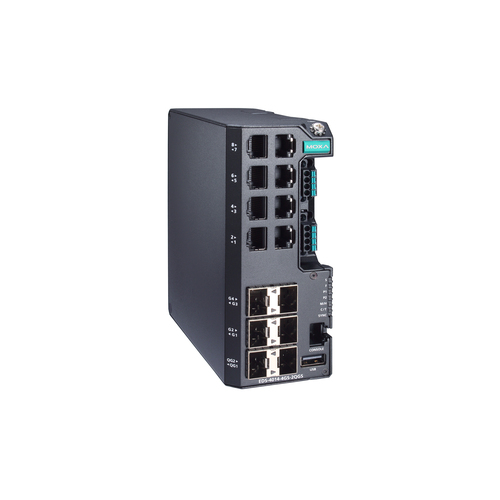

EDS-4014 Series
EDS-4014 Series
The Moxa EDS-4014 Series is a 14-port managed Fast Ethernet switch with fiber uplinks for video, process monitoring, ITS and DCS networks.
Four 1 Gbps and two 2.5 Gbps fiber-optic ports
Developed to IEC 62443-4-1, compliant with IEC 62443-4-2
Turbo Ring and Turbo Chain under 20 ms, RSTP/STP
EtherNet/IP, PROFINET and Modbus support, MXstudio
-40 to 75 °C, compact IP40 housing, DIN rail or wall
9.6–60 VDC, 88–300 VDC or 85–264 VAC input
ATEX, IECEx, Class I Div 2, DNV, IEC 61850-3, IEEE 1613
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| Type of switch | Layer 2 |
|---|---|
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Temperature range | -40°C ~ 75°C |
| Supply voltage | 85–264 VAC, 88–300 VDC, 9,6–60 VDC |
| IP Classification | IP40 |
| Mounting | DIN rail, Wall |
| Dimensions | 55 x 140 x 122,5 mm |
| Weight | 846 g |
| Power consumption | 14,44 W |
| Number of ports | 14 |
| Digital inputs | 1 |
| Fieldbus/Interface | Ethernet, Ethernet/IP, Modbus, Profinet |
| Approvals | ATEX, Class I Div 2, DNV, IEC 61850-3, IEC 62443-4-2, IECEx, IEEE 1613, UL |
| MTBF | 1.003.814 h, 489.769 h |
