DM221 strain gauge amplifier, analog output
DM221 strain gauge amplifier, analog output

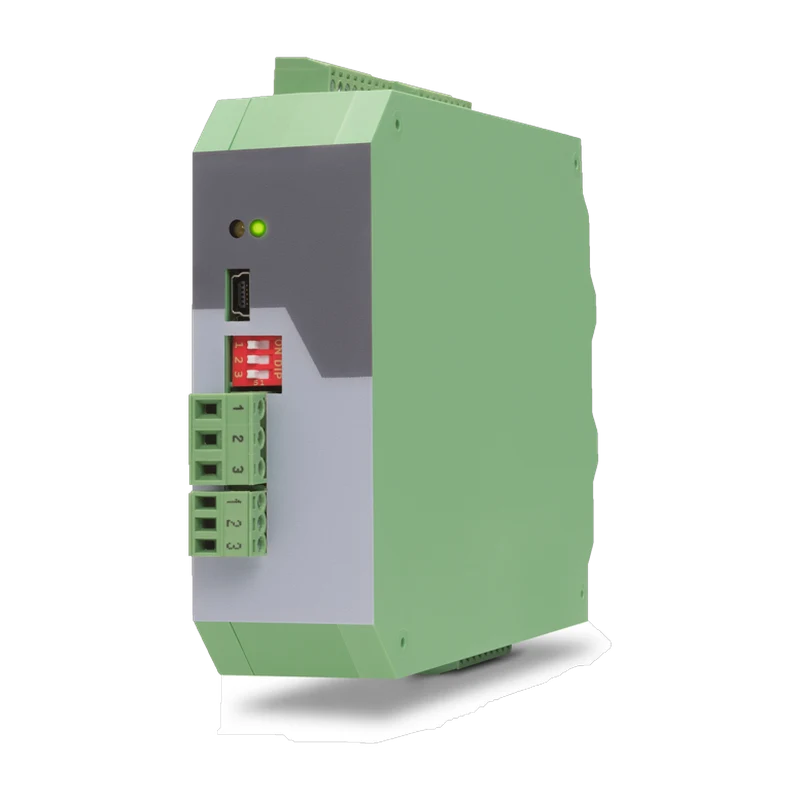

The Motrona DM221 is a single-channel strain gauge amplifier that converts force sensor signals into an analog output for presses, rolling and test machines.
6-wire input for one full-bridge strain gauge
Analog output ±10 V or 0/4 to 20 mA, 16 bit
Bridge voltage 3 to 10 VDC, sensitivity 1 to 10 mV
4 control inputs and 4 status outputs
Sensor data via RS485, setup via USB
18 to 30 VDC, IP20 housing for 35 mm DIN rail
Additional information
| Sector | Factory Automation |
|---|---|
| Supply voltage | 18–30 VDC |
| Mounting | DIN rail |
| IP Classification | IP20 |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Analog outputs | 1 |
| Fieldbus/Interface | RS-485, USB |
