Simple low cost indicator with front dimensions 48×24 mm and LED size 8 mm. Power sup
Simple low cost indicator with front dimensions 48×24 mm and LED size 8 mm. Power supply 10 … 30 VDC. Analogue inputs 0-10V, 0-20 mA and 4-20 mA. Display range -19 999 to 99 999, adjustable zero and full scale value, 14 bits of resolution. Latch input to freeze the display, minimum/ maximum record memory….

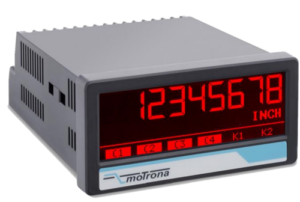

By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphi
By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LED-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these colour variations simply can be used…
BY340 from Motrona is a series of compact synchronous controllers, built into a standard.
BY340 from Motrona is a series of compact synchronous controllers, built into a standard. The controllers have DIN housing and are designed for front panel mounting. Since most affordable in price, these units are also suitable for use with small machines and limited budgets. BY340 has a full angular and positional control with adjustable gear…

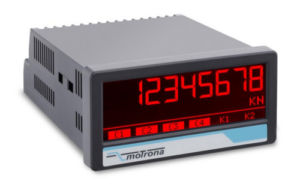

Our strain gauge indicator has a 6-wire connection for a strain gauge full bridge sensor.
Our strain gauge indicator has a 6-wire connection for a strain gauge full bridge sensor. This means that all types of tension, pressure and force sensors can be connected to the DM350. The force measurements carried out in this way are widely used in industry, for example in hydraulic presses, rolling machines, bending machines, strength…

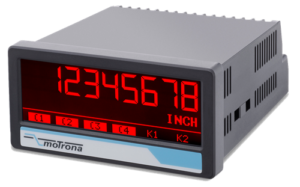

The DP350 with its start-stop interface was developed for the transsonar distance measurem
The DP350 with its start-stop interface was developed for the transsonar distance measurement with the aid of absolute transducers and magnetostrictive sensors. The device has a resistive touch screen with multicolor graphic display (red, green, yellow). The display can be programmed depending on the event. The device provides many functions such as scaling, filters, zero…
Safety motion monitor for SinCos and incremental encoders / sensors. Monitoring underspeed
Safety motion monitor for SinCos and incremental encoders / sensors. Monitoring underspeed, overspeed, standstill and direction of rotation. SIL3 and PLe certification. Safety functions equivalent to EN61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM). Inputs for: 2 SinCos encoders. 2 RS422 incremental encoders. 2 HTL / PNP incremental encoders, proximity switches or control signals. Outputs (safety…
SIL2 and PLd certification Safety functions equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS
SIL2 and PLd certification Safety functions equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS) 1 incremental encoder input with format A, /A, B, /B, Z, /Z [HTL differencial, RS422] 8 control inputs [HTL / PNP] Input frequency up to 500 kHz 2 relay outputs 5… 250 VAC / VDC…
By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphi
By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LCD-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these colour variations simply can be used…

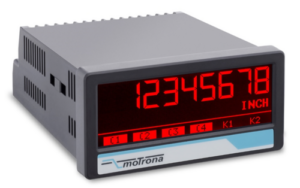

For incremental encoders: Operating modes as frequency converter or position transducer (p
For incremental encoders: Operating modes as frequency converter or position transducer (pulse counter). Universal incremental inputs (HTL/TTL/RS422) for NPN/PNP/NAMUR encoders and sensors. Functions such as linkages (eg. A+B), scaling, filters, start-up bridging, … Input frequencies up to 1 MHz. For SSI absolute encoders: Master or Slave operation with clock frequencies up to 1 MHz. For…
DZ266 is a multifunctional f-V and f-I converter module with fast response time and many p
DZ266 is a multifunctional f-V and f-I converter module with fast response time and many programmable features for conversion of frequencies to voltage, to current or to serial data format. DZ266 has a scalable LCD display for indication of the actual input frequency and the operating state. It has universal impulse inputs for use with…
The EtherCAT indicator EC350 can record, calculate, evaluate, display and pass on process
The EtherCAT indicator EC350 can record, calculate, evaluate, display and pass on process data. The interfaces also enable the configuration and scaling of the device during the transmission of status information during operation. It is ideally suited as an on-site indicator with a resistive touchscreen, multi-color graphic display (red, green, yellow) and bargraph. Multi-function display…
With the Motrona FU210 you will get a high performance frequency-to-analogue and frequency
With the Motrona FU210 you will get a high performance frequency-to-analogue and frequency-to-serial converter with outstanding features and multiple conversion modes. FU210 can convert all frequencies, but also the sum, the difference, the product or the ratio of two frequencies to analogue and to serial format. Wide input range from 1 Hz to 1 MHz…
GI 210 from Motrona offers a contactless and bounce-free commutation of all signals via re
GI 210 from Motrona offers a contactless and bounce-free commutation of all signals via remote 24 volts control signal. Automatic synchronisation of the change over point to next SSI transmission paus. All connections with GI 210 are made via screw terminal strip. GI 210 has a slim and space-saving housing for DIN rail mounting.
Encoder inputs: – 1 encoder input A, /A, B, /B, Z, /Z – Input level RS422 / TT
Encoder inputs: – 1 encoder input A, /A, B, /B, Z, /Z – Input level RS422 / TTL or HTL (adjustable) Encoder outputs: – 2 Outputs each A, /A, B, /B, Z, /Z – Output level RS422 / TTL or/ HTL (individually adjustable)
GV 210 is a universal encoder interface from Motrona, applicable as dual level converter,
GV 210 is a universal encoder interface from Motrona, applicable as dual level converter, encoder splitter and encoder cross switch. It has two encoder inputs A, B, Z, and /A, /B, /Z, each individually adjustable to either TTL/RS422 level or to HTL (10-30V) level. GV 210 has two signal outputs A, B, Z and /A,…

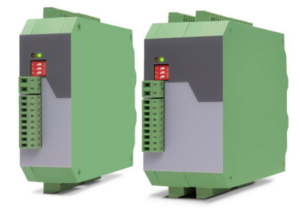

Product features: • Power supply from 10 up to 30 VDC • 1 encoder input for channels A
Product features: • Power supply from 10 up to 30 VDC • 1 encoder input for channels A, /A, B, /B, Z, /Z • Input levels selectable between RS422, TTL and HTL • Optionally types with 2, 4 or 8 outputs with or without potential separation available (see below) • Output levels are specified by…

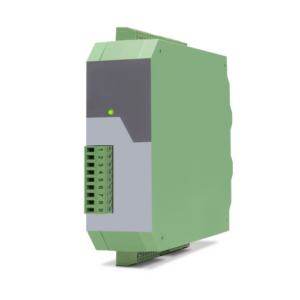

• Signal converter with analog input and IO-Link interface for analog input signals of Â
• Signal converter with analog input and IO-Link interface for analog input signals of ±10 V or 0/4 … 20 mA. • Precise signal processing: Ideal for the reliable acquisition and transmission of analog signals. • Versatile application possibilities: Switchable averaging and adjustable sampling intervals for each analog input.
• IO-Link coupler with strain gauge input and IO-Link interface for force sensors and lo
• IO-Link coupler with strain gauge input and IO-Link interface for force sensors and load cells. • High-precision measurements: Developed for the precise processing of strain gauge signals. • Generation of pending events possible: e.g. calculated bridge resistance above or below the set target resistance, bridge current > 50 mA, undervoltage, etc.
• Converter with incremental input and IO-Link interface for HTL/TTL/RS422 and NPN/PNP/N
• Converter with incremental input and IO-Link interface for HTL/TTL/RS422 and NPN/PNP/NAMUR encoders and sensors. • Fast data transmission: Ideal for real-time applications with high signal processing requirements. • Numerous connection options via expansion option (IO222/CO) (three additional control inputs and two additional control outputs).
• Coupler with SSI input and IO-Link interface for singleturn and multiturn encoders. â€
• Coupler with SSI input and IO-Link interface for singleturn and multiturn encoders. • Operating modes: As master or slave with clock frequencies up to 2 MHz. • Useful functions: Bit blanking, concentricity function and zero offset.

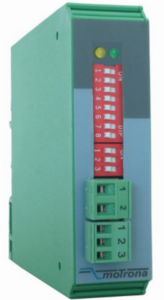

The Pulse Divider IT210 is the functionally compatible and more powerful successor to our
The Pulse Divider IT210 is the functionally compatible and more powerful successor to our proven signal converterIT251. The IT210 is a universal interface using with incremental measuring systems with diverse functions, such as: Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa), Division of two-track A / B pulses with adjustable ratio…
The Motrona IV210 is a SSI Signal converter suitable for use with all SSI type sensors and
The Motrona IV210 is a SSI Signal converter suitable for use with all SSI type sensors and absolute encoders from 9 to 25 bits, either with Master mode or with Slave mod. IV210 has analogue outputs +/- 10V, 0-20 mA or 4-20 mA, proportional to the encoder position. Features: – RS 232 and RS 485…
Master or Slave operation with clock frequencies up to 1 MHz. For single turn and multi tu
Master or Slave operation with clock frequencies up to 1 MHz. For single turn and multi turn encoders with SSI formats from 10 … 32 Bit. Bright and high-contrast display with event-dependent color variations. Emulation of a 7-segment display inclusively icons and units. Intuitive and easy parameterization by plain text and touchscreen. 5 V /…
The optical fiber module LW218 is the receiving module of the transmission system for the
The optical fiber module LW218 is the receiving module of the transmission system for the optical transmission of industrial signal data via an optical fiber. The LW receiver converts the optical signals transmitted from the transmitter module to the receiver via a fiber optic line up to 2000 meters in length back into the original…
MC700 from Motrona is a universal motion controller for 1 to 4 axis, programmable for mult
MC700 from Motrona is a universal motion controller for 1 to 4 axis, programmable for multiple motion applications by simple download of the corresponding function firmware. With use of our BY701 firmware MC700 provides excellent solutions with all kinds of multi-axis synchronizing applications. MC700 offers numerous possibilities for control of relative phase, position, index and…
