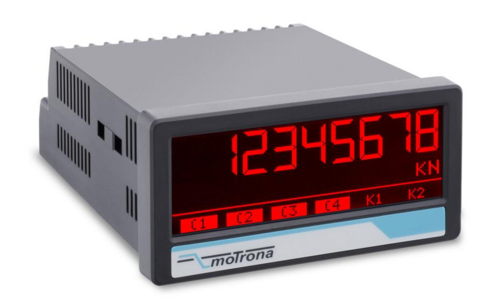

DM350 Indicator for force sensors (full bridge)
DM350 Indicator for force sensors (full bridge)
DM350 is a touchMATRIX strain gauge indicator for panel mounting that displays force values from a full bridge sensor.
16-bit input with sensitivity from ±5 to ±80 mV
Bridge supply adjustable from 3 to 10 VDC
Resistive touchscreen with event-based colour display
Three HTL inputs for triggering different states
Options for 16-bit analog output, relays and Modbus
96 x 48 mm housing with IP65 front
18–30 VDC, or 115–230 VAC with option AC
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -20°C ~ 60°C |
| Supply voltage | 115–230 VAC, 18–30 VDC |
| IP Classification | IP65 front |
| Mounting | Panel |
| Material | Plastic |
| Dimensions | 96 x 48 x 116 mm |
| Weight | 200 g |
| Touch | Resistive |
| Digital inputs | 3 |
| Digital outputs | 4 |
| Analog outputs | 1 |
| Fieldbus/Interface | Modbus, RS-232, RS-485 |
| Serial standard | RS-232, RS-485 |
| Contact config | Change over (CO) |
| Analog inputs | 1 |
