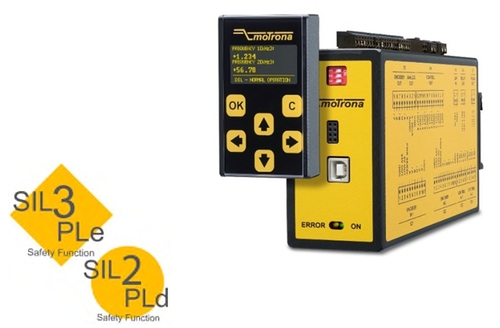

DS250 and DS260 Safety motion monitor
DS250 and DS260 Safety motion monitor
DS250 and DS260 are safety motion monitors up to SIL3/PLe that supervise speed, standstill and direction of rotation on machines with incremental encoders.
DS250 uses two uncertified sensors, DS260 one certified sensor
Safety functions equivalent to EN 61800-5-2, such as SLS, SOS and STO
Incremental inputs HTL or RS422 up to 500 kHz
Wire monitoring of sensor signals and eight control inputs
Safe relay pair 5–250 VAC/VDC and 4–20 mA output
Safe splitter output forwards the encoder signal
USB setup, optional BG200 display, DIN rail housing
Additional information
| Sector | Factory Automation |
|---|---|
| Supply voltage | 18–30 VDC |
| IP Classification | IP20 |
| Temperature range | -20°C ~ 55°C |
| Mounting | DIN rail |
| Material | Plastic |
| Dimensions | 50 x 100 x 165 mm |
| Weight | 400 g |
| Safety level | Cat. 3, PL e, SIL 3 |
| Contact config | Normally open (NO) |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Analog outputs | 1 |
| Fieldbus/Interface | USB |
| Vibration | 7 G |
| Shock | 30 G |
