DZ220 Signal Converter
DZ220 Signal Converter

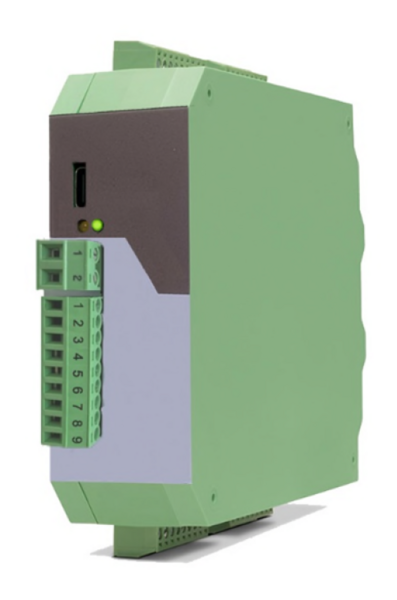

DZ220 is a multifunction signal converter for DIN rail that turns incremental, SSI and start-stop encoder signals into analog or serial data.
Incremental inputs HTL, TTL and RS422 up to 1 MHz
SSI master or slave, 10 to 32 bit
Start-stop interface for magnetostrictive position sensors
16-bit analog output, ±10 V or 0/4–20 mA
Linearisation in 24 points, response under 1 ms
5 control inputs, 4 control outputs, optional 4 relays
Easy setup via USB-C and free OS software
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -20°C ~ 60°C |
| Supply voltage | 18–30 VDC |
| IP Classification | IP20 |
| Mounting | DIN rail |
| Material | Plastic |
| Dimensions | 34 x 100 x 131 mm |
| Weight | 160 g |
| Digital inputs | 5 |
| Digital outputs | 4 |
| Analog outputs | 1 |
| Fieldbus/Interface | RS-232, USB |
| Serial standard | RS-232 |
| Contact config | Change over (CO) |
| Accuracy | ±0,1% |
