GV22 and GT22 Series for encoder signals
GV22 and GT22 Series for encoder signals

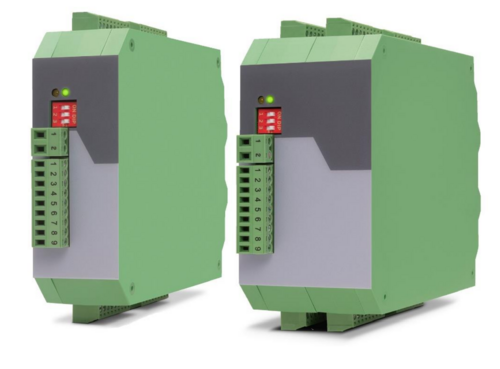

The Motrona GV22 and GT22 series are pulse splitters that share one incremental encoder signal between several devices in automation systems.
One encoder input, selectable for RS422, TTL or HTL
2, 4 or 8 push-pull outputs at 5–30 V
GT22 models with potential separation between input and outputs
Up to 1 MHz with RS422 or TTL input
Short-circuit proof 5 V and 24 V encoder supply
10–30 VDC supply and 35 mm DIN rail mounting
GV228/EV and GT228/ET expandable with more outputs
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -20°C ~ 60°C |
| Supply voltage | 10–30 VDC |
| IP Classification | IP20 |
| Mounting | DIN rail |
| Material | Plastic |
| Dimensions | 34 x 100 x 131 mm, 54 x 100 x 131 mm |
| Weight | 160 g, 240 g |
