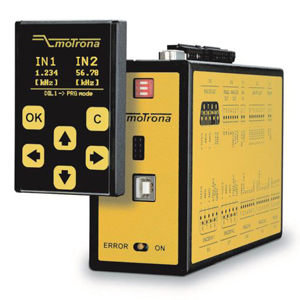

DS230 and DS240 Safety motion monitor
DS230 and DS240 Safety motion monitor
DS230 and DS240 are SIL3/PLe safety motion monitors for machines with SinCos or incremental encoders, supervising speed, standstill and direction.
Safety functions equivalent to EN 61800-5-2, such as SLS, SOS and SDI
DS230 takes 2 SinCos, 2 RS422 and 2 HTL inputs
DS240 has one SinCos input and two control inputs
Encoder frequencies up to 500 kHz
Safe relay output 5–36 VDC, 4–20 mA and 4 HTL outputs
Safe SinCos and RS422 splitter outputs
USB setup via OS 6.0, optional BG230 display
Additional information
| Sector | Factory Automation |
|---|---|
| Supply voltage | 18–30 VDC |
| IP Classification | IP20 |
| Temperature range | -20°C ~ 55°C |
| Mounting | DIN rail |
| Max current | 5 A DC |
| Material | Plastic |
| Dimensions | 50 x 100 x 165 mm |
| Weight | 390 g |
| Safety level | Cat. 3, PL e, SIL 3 |
| Contact config | Normally open (NO) |
| Analog outputs | 1 |
| Digital outputs | 4 |
| Fieldbus/Interface | USB |
| Vibration | 7 G |
| Shock | 30 G |
