DX350 touchMATRIX® series
DX350 touchMATRIX® series

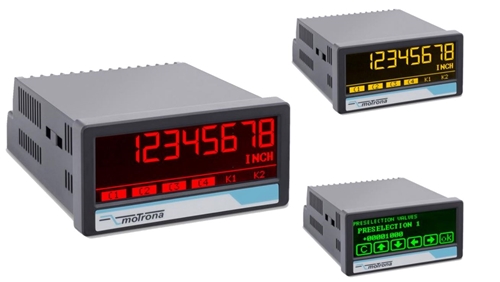

The Motrona DX350 is a touchMATRIX® pulse counter, tachometer and speed indicator with touchscreen for panel mounting on machines.
Modes for speed, position, counting, timer and stopwatch
HTL inputs for NPN, PNP and NAMUR sensors
Up to 250 kHz, or 1 MHz on the DX355 version
Linearisation with 24 points, scaling and filtering
Colour display that switches red, green or yellow
Options for analog, control and relay outputs, RS232/RS485
96 x 48 mm panel housing with IP65 front
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -20°C ~ 60°C |
| Supply voltage | 115–230 VAC, 18–30 VDC |
| IP Classification | IP65 front |
| Mounting | Panel |
| Material | Plastic |
| Dimensions | 96 x 48 x 116 mm |
| Weight | 200 g |
| Touch | Resistive |
| Digital inputs | 3 |
| Digital outputs | 4 |
| Analog outputs | 1 |
| Fieldbus/Interface | RS-232, RS-485 |
| Serial standard | RS-232, RS-485 |
| Contact config | Change over (CO) |
