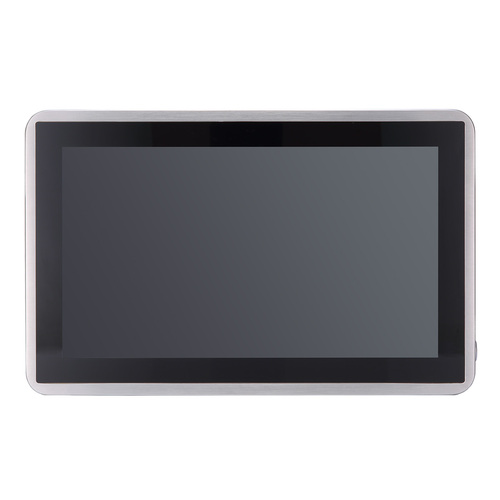

GOT815A-TGL-WCD 15.6″ WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer
GOT815A-TGL-WCD 15.6″ WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer
● 15.6″ WXGA TFT flat bezel LCD display
● IP66/IP69K-rated (NEMA 4) water/dust design
● Full stainless-steel enclosure with SUS 304
● -20°C to +50°C wide operating temperature range
● Fanless design with Intel® Core™ i5-1145G7E or Celeron® 6305E processor
● Wi-Fi kit for wireless network connectivity (optional)
● Supports VESA mount
● M12-type connectors for harsh environments
● Supports proximity and light sensors (optional)
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| IP Classification | IP66, IP69K |
|---|---|
| Screen size | 15,6'' |
| Touch | Capacitive |
| Mounting | Wallmount |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Temperature range | -20°C ~ 50°C |
| Supply voltage | 12–24 VDC |
| Power consumption | 72 W |
| Processor | Intel Celeron 6305E, Intel Core i5-1145G7E |
| Max memory | 32GB |
| Display resolution | 1366×768 |
| Brightness (nits) | 400 nits |
| Dimensions | 414,8 x 55 x 265,1 mm |
| Weight | 5,8 kg |
| Material | Stainless steel |
| Storage | SSD |
| Operating system | Linux, Windows |
| Cooling | Fanless |
| LAN ports | 1 |
| USB ports | 4 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Approvals | ATEX, Class I Div 2 |
| Vibration | 1 G |
