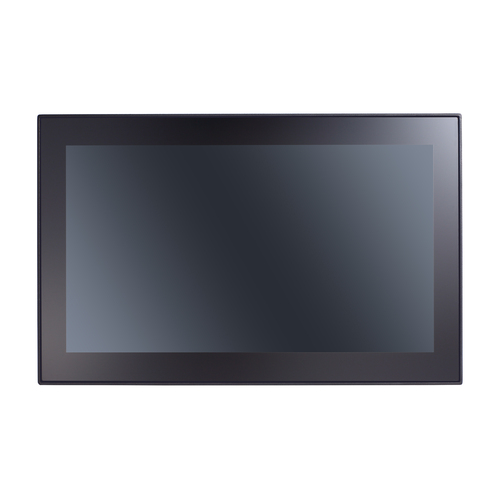

Panel PC 15.6″ MPC-3150W
Panel PC 15.6″ MPC-3150W
The Moxa MPC-3150W is a 15.6-inch fanless panel PC for harsh, hot outdoor sites such as oil and gas fields and drilling platforms.
Intel Atom® x6211E dual-core or x6425E quad-core processor
1920 x 1080 display, 400 or 1000 nit, sunlight-readable
Projected-capacitive, glove-friendly multi-touch screen
2 Gigabit LAN, 2 RS-232/422/485, 4 DI and 4 DO
-30 to 60 °C without fan or heater, IP66 front
12/24 VDC input, panel mounting
DNV, Class I Division 2, ATEX Zone 2 and IECEx
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
|---|---|
| Temperature range | -30°C ~ 60°C |
| Supply voltage | 12 VDC, 24 VDC |
| IP Classification | IP66 front |
| Approvals | ATEX, Class I Div 2, DNV, IECEx, UL |
| Mounting | Panel |
| Screen size | 15,6'' |
| Display resolution | 1920×1080 |
| Touch | Capacitive |
| Brightness (nits) | 1000 nits, 400 nits |
| Processor | Intel Atom x6211E, Intel Atom x6425E |
| Max memory | 32GB |
| Operating system | Linux, Windows |
| Cooling | Fanless |
| LAN ports | 2 |
| USB ports | 2 |
| COM ports | 2 |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Power consumption | 55 W |
| Dimensions | 398 x 254 x 75,7 mm |
| Weight | 4 kg |
| Memory | 8GB |
