Panel PC 12.1″ – MPC-3120 Series
Panel PC 12.1″ – MPC-3120 Series

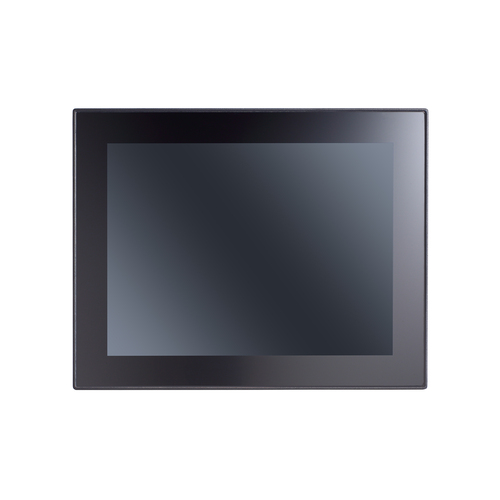

The Moxa MPC-3120 Series is a 12.1-inch industrial panel PC that combines display and computer in one unit for operator stations.
12.1-inch screen in the 12 to 17 inch class
Display and computer integrated in a single housing
Built for front mounting in control panels and machines
Suitable for HMI and operator interface applications
Part of the Moxa range of industrial computers
Series with several model variants to choose from
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
|---|---|
| Processor | Intel Atom x6211E, Intel Atom x6425E |
| Memory | 8GB |
| Max memory | 32GB |
| Screen size | 12.1'' |
| Display resolution | 1024×768 |
| Brightness (nits) | 1000 nits, 400 nits |
| Touch | Capacitive |
| LAN ports | 2 |
| COM ports | 2 |
| USB ports | 2 |
| Display outputs | 1 |
| Serial standard | RS-232, RS-422, RS-485 |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Power consumption | 48 W |
| Dimensions | 315 x 220 x 75,7 mm |
| Weight | 2,9 kg |
| Temperature range | -30°C ~ 60°C |
| Operating system | Linux, Windows |
| Mounting | Panel |
| IP Classification | IP66 front |
