AFL4-121-ADLP-i5/8G-R10
AFL4-121-ADLP-i5/8G-R10

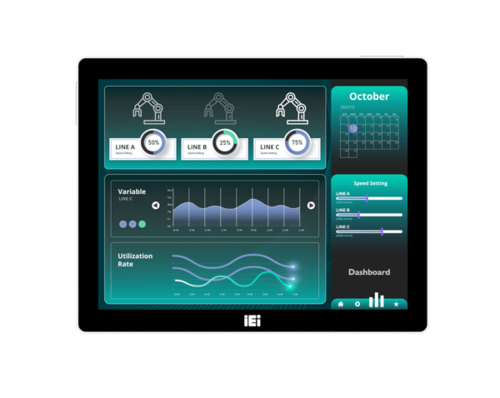

The IEI AFL4-121-ADLP-i5/8G-R10 is a 12.1-inch fanless panel PC with Intel Core i5 for factory automation, retail, transportation and surveillance.
Intel Core i5-1340PE with 8GB soldered LPDDR4x memory
12.1-inch display, 1024×768 resolution and 500 nits
Anti-glare, anti-UV PCAP touch for gloved or wet hands
IP64 front panel in aluminium, narrow bezel design
2 LAN, 5 USB and 4 COM ports (RS-232/422/485)
Wi-Fi 6E, Bluetooth 5.2 and M.2 storage
12 VDC, -10°C to 50°C, MIL-STD-810, VESA or wall mount
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| Screen size | 12.1'' |
|---|---|
| Touch | Capacitive |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Temperature range | -10°C ~ 50°C |
| Supply voltage | 12 VDC |
| IP Classification | IP64 front |
| Approvals | MIL-STD-810 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Serial standard | RS-232, RS-422, RS-485 |
| Mounting | VESA, Wall |
| Material | Aluminium |
| Operating system | Linux, Windows |
| Processor | Intel Core i5-1340PE |
| Display resolution | 1024×768 |
| Brightness (nits) | 500 nits |
| Cooling | Fanless |
| LAN ports | 2 |
| USB ports | 5 |
| COM ports | 4 |
| Display outputs | 1 |
| Wi-Fi standard | Wi-Fi 6E |
| Storage | M.2 |
| Shock | 5 G |
| Dimensions | 280,36 x 220,92 x 57,8 mm |
| Weight | 2,38 kg |
| Memory | 8GB |
