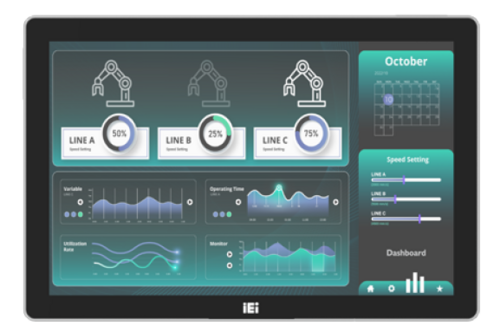

AFL4-W12-EHL 12.1” Fanless Panel PC
AFL4-W12-EHL 12.1” Fanless Panel PC
The IEI AFL4-W12-EHL is a 12.1-inch fanless panel PC with Intel Elkhart Lake processor for industrial HMI and control applications.
Intel Celeron J6412 processor and 8GB memory
12.1-inch widescreen display, 1280×800 at 500 nits
PCAP touch with anti-glare and anti-UV treatment
Operation with gloves or wet hands supported
2 LAN, 5 USB and 4 COM ports (RS-232/422/485)
Wi-Fi 6E, Bluetooth 5.2 and M.2 2242 storage slot
Panel, VESA or wall mount, 12 VDC, -10°C to 50°C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| IP Classification | Unrated |
|---|---|
| Screen size | 12.1'' |
| Touch | Capacitive |
| Mounting | Panel, VESA, Wallmount |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Temperature range | -10°C ~ 50°C |
| Processor | Intel Celeron J6412 |
| Supply voltage | 12 VDC |
| Display resolution | 1280×800 |
| Brightness (nits) | 500 nits |
| Dimensions | 295,72 x 197,8 x 47,4 mm |
| Storage | M.2 |
| Form factor | M.2 2242 |
| Operating system | Linux, Windows |
| LAN ports | 2 |
| USB ports | 5 |
| COM ports | 4 |
| Display outputs | 1 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Wi-Fi standard | Wi-Fi 6E |
| Cooling | Fanless |
| Memory | 8GB |
