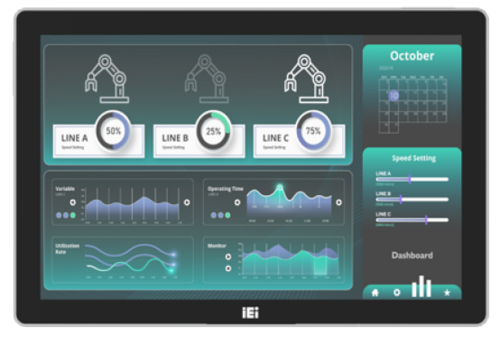

AFL4-W13-EHL 13.3” Fanless Panel PC
AFL4-W13-EHL 13.3” Fanless Panel PC
The IEI AFL4-W13-EHL is a 13.3-inch fanless panel PC with Intel Elkhart Lake processor for industrial HMI and control applications.
Intel Celeron J6412 processor with 8GB memory
13.3-inch Full HD display, 1920×1080 and 350 nits
Anti-glare, anti-UV PCAP touch for gloved or wet hands
2 LAN, 5 USB and 4 COM ports (RS-232/422/485)
Wi-Fi 6E, Bluetooth 5.2 and M.2 2242 storage
Panel, VESA or wall mounting with narrow bezel design
12 VDC input, operating range -10°C to 50°C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| IP Classification | Unrated |
|---|---|
| Screen size | 13.3'' |
| Touch | Capacitive |
| Mounting | Panel, VESA, Wallmount |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Temperature range | -10°C ~ 50°C |
| Processor | Intel Celeron J6412 |
| Supply voltage | 12 VDC |
| Display resolution | 1920×1080 |
| Brightness (nits) | 350 nits |
| Dimensions | 327,7 x 203,33 x 47,5 mm |
| Storage | M.2 |
| Form factor | M.2 2242 |
| Operating system | Linux, Windows |
| LAN ports | 2 |
| USB ports | 5 |
| COM ports | 4 |
| Display outputs | 1 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Wi-Fi standard | Wi-Fi 6E |
| Cooling | Fanless |
| Memory | 8GB |
