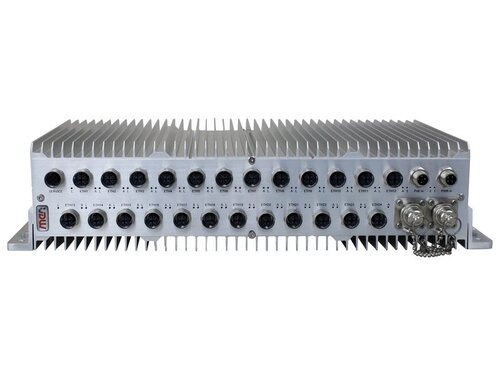

NL34 Robust 24-Port Fully Managed Ethernet Switch with PoE
NL34 Robust 24-Port Fully Managed Ethernet Switch with PoE
» 24x 10/100/1000BASE-TX ports
» 2x 10/100/1000BASE-TX uplink ports with bypass relay on one uplink pair
» M12 A-, D- or X-coded (screwed and push-pull)
» 22x PoE+ Power Sourcing Equipment, up to 600 W
» Ultra-wide range rail power supply: 24 V DC to 110 V DC
» ITU-T G.8031/G.8032 Ethernet linear and ring protection switching
» 2x 1000BASE-SX fiber uplink (Q-ODC) (optional)
» -40 °C to +70 °C (+85 °C), fanless
» EN 50155 compliant (railways)
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| IP Classification | IP30 |
|---|---|
| Number of ports | 24 |
| Type of switch | Fiber, Gigabit |
| Mounting | Rack, Wallmount |
| Sector | Defence |
| Material | Aluminium |
| Temperature range | -40°C ~ 70°C |
| Supply voltage | 24–110 VDC |
| Power consumption | 130 W |
| Dimensions | 390 x 89 x 236 mm |
| Weight | 6,55 kg |
| Approvals | EN 45545-2, EN 50155 |
| Fieldbus/Interface | Ethernet, RS-232 |
| Serial standard | RS-232 |
| PoE ports | 22 |
| PoE budget | 600 W |
| Cooling | Fanless |
| Shock | 5,1 G |
| Vibration | 1,2 G |
