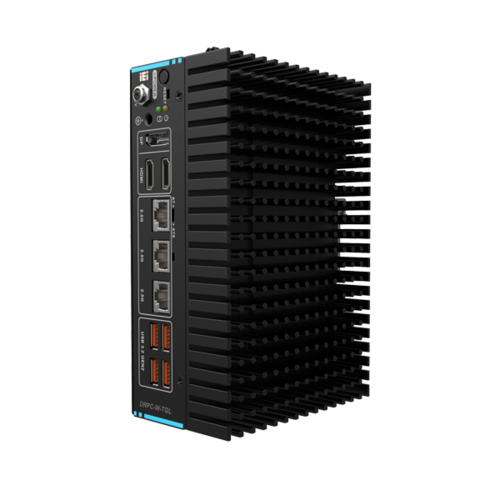

DRPC-W-TGL Fanless DIN-Rail Embedded System
DRPC-W-TGL Fanless DIN-Rail Embedded System
» Supported CPU:
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quadcore, TDP 15W)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quadcore, TDP 15W)
Intel® Core™ i3-1115G4E 2.2 GHz (up to 3.9 GHz, dualcore, TDP 15W)
Intel® Celeron™ 6305 1.8 GHz (dual-core, TDP 15W)
» Support three independent display
» 3 x 2.5GbE ports
» 1 x M.2 A Key
» 1 x M.2 B Key (with SIM card slot)
» CE/FCC compliant
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | PCIe |
| Storage | SSD |
| Temperature range | -20°C ~ 60°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Supply voltage | 12 VDC |
| Processor | Intel Celeron 6305, Intel Core i3-1115G4E, Intel Core i5-1145G7E, Intel Core i7-1185G7E |
| Max memory | 32GB |
| LAN ports | 3 |
| USB ports | 4 |
| Cooling | Fanless |
| Material | Aluminium |
| Dimensions | 176 x 116 x 67,8 mm |
| Weight | 0,98 kg |
| Shock | 5 G |
| Fieldbus/Interface | Ethernet, USB |
| Operating system | Linux, Windows |
| Mounting | DIN rail |
| Memory | 8GB |
