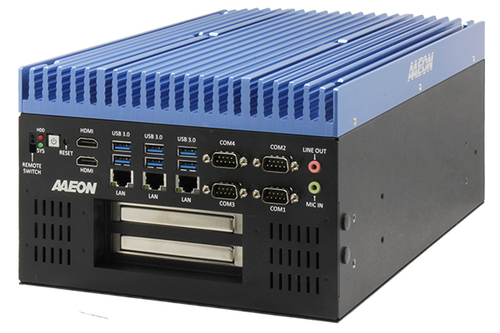

BOXER-6840-CFL High Computing Power Embedded Controller
BOXER-6840-CFL High Computing Power Embedded Controller
The BOXER-6840-CFL is a compact embedded controller with 8th/9th Gen Intel Core and Xeon processors for vision and GPU-accelerated applications.
Intel Core i3 to i9 or Xeon E-2124G
Up to 128 GB DDR4, ECC or non-ECC
Two 2.5″ bays with RAID and M.2 NVMe slot
PCIe x16 for GPUs up to 250 W plus PCIe x4
Three GbE LAN, six USB 3.2 Gen 1, four COM ports
Two HDMI outputs for dual 4K displays
12–24 VDC input, -20°C to 60°C operating range
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | PCIe |
| Storage | M.2, SSD |
| Temperature range | -20°C ~ 60°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Core 8th–9th Gen, Intel Xeon E-2124G |
| Max memory | 128GB |
| Supply voltage | 12–24 VDC |
| Operating system | Linux, Windows |
| Mounting | Wall |
| Dimensions | 220 x 150 x 320 mm |
| Weight | 7 kg |
| Shock | 50 G |
| Vibration | 1 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 3 |
| USB ports | 6 |
| COM ports | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 2 |
| Form factor | 2.5'', M.2 2280 |
