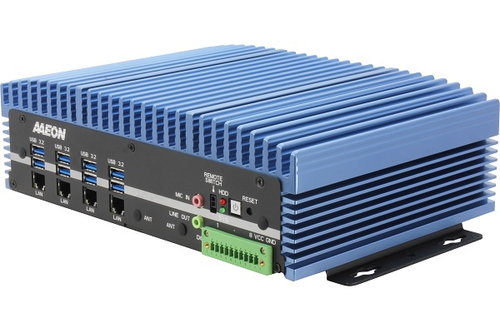

BOXER-6645-ADS Box PC
BOXER-6645-ADS Box PC
The BOXER-6645-ADS is a fanless embedded box PC with socket-type 12th Gen Intel Core processors for demanding industrial applications.
Intel Core i3 to i9 with up to 16 cores
Up to 64 GB DDR5 4800 memory
Two 2.5″ SATA bays, RAID 0/1 and M.2 NVMe on A2 model
Four LAN ports including 2.5GbE, up to eight USB 3.2
Up to four displays, six COM ports and 8-bit DIO
M.2 slots for Wi-Fi and 4G/5G modules
12–24 VDC input, -20°C to 50°C operating range
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | M.2 |
| RAID | Yes |
| Storage | M.2, SSD |
| Temperature range | -20°C ~ 50°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Core 12th Gen |
| Max memory | 64GB |
| Supply voltage | 12–24 VDC |
| Operating system | Linux, Windows |
| Mounting | Wall |
| Dimensions | 264 x 80,92 x 186,2 mm |
| Weight | 4,3 kg |
| Shock | 50 G |
| Vibration | 3 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 4 |
| USB ports | 8 |
| COM ports | 6 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 4 |
| Form factor | 2.5'', M.2 2280 |
| Storage interface | SATA III |
| Cooling | Fanless |
