BXP-C100 Series
BXP-C100 Series

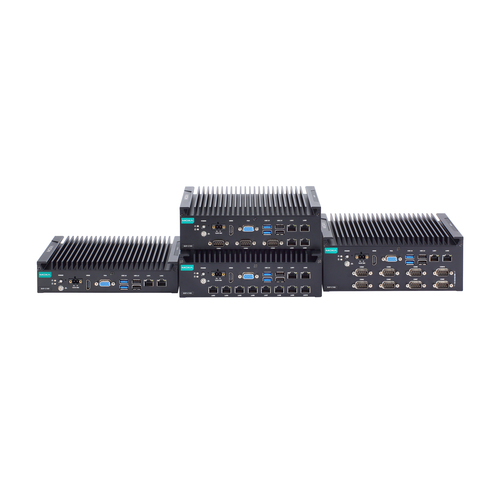

The Moxa BXP-C100 Series is a compact fanless box PC for wall mounting, powered by 11th Gen Intel® processors for industrial applications.
Intel® Celeron® 6305E, Core™ i5-1145G7E or i7-1185G7E
8 GB RAM, max 32 GB, CFast and SD storage slots
Up to 10 Gigabit LAN and 10 RS-232/422/485 ports
4 digital inputs and 4 digital outputs
Interfaces on front and rear for easy access
-30 to 60 °C operating temperature, IP20
12 or 24 VDC input, Windows or Linux
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
|---|---|
| Processor | Intel Celeron 6305E, Intel Core i5-1145G7E, Intel Core i7-1185G7E |
| Max memory | 32GB |
| Operating system | Linux, Windows |
| LAN ports | 10, 2 |
| COM ports | 10, 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Supply voltage | 12 VDC, 24 VDC |
| Power consumption | 90 W |
| IP Classification | IP20 |
| Dimensions | 210 x 166 x 48 mm, 210 x 166 x 83 mm |
| Weight | 2.015 g, 2.385 g |
| Mounting | Wall |
| Temperature range | -30°C ~ 60°C |
| Cooling | Fanless |
| MTBF | 490.983 h |
| Approvals | UL |
| Memory | 8GB |
