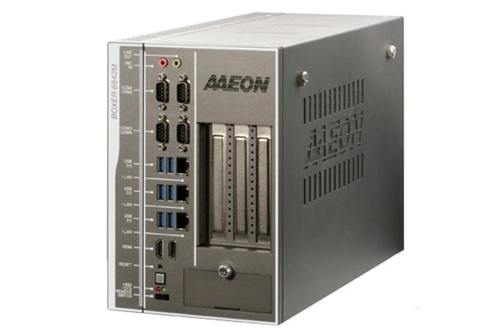

Boxer-6842M High Computing Power
Boxer-6842M High Computing Power
The BOXER-6842M is an expandable box PC with 8th/9th Gen Intel Core and Xeon E processors for machine vision and AI edge servers.
Intel Core i3 to i9 or Xeon E-2124G, up to 71 W
Up to 128 GB DDR4, ECC or non-ECC
Two 2.5″ bays with RAID and M.2 NVMe slot
PCIe x16, x8 and x4 options for GPUs or frame grabbers
Three GbE LAN, six USB 3.2 Gen 1, four COM ports
Two HDMI outputs, 12–24 VDC input
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | M.2, Mini PCIe, PCIe |
| RAID | Yes |
| Storage | mSATA, SSD |
| Temperature range | -20°C ~ 65°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Core 8th–9th Gen, Intel Xeon E-2124G |
| Max memory | 128GB |
| Supply voltage | 12–24 VDC |
| Operating system | Linux, Windows |
| Mounting | Wall |
| Dimensions | 156,7 x 226,5 x 325 mm, 197,3 x 226,5 x 325 mm |
| Weight | 7,1 kg, 8,1 kg |
| Vibration | 1 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 3 |
| USB ports | 6 |
| COM ports | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 2 |
| Form factor | 2.5'', M.2 2280 |
| Cooling | Fan, Fanless |
