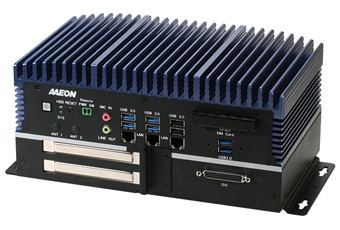

BOXER-6839-CFL Fanless Embedded Box PC
BOXER-6839-CFL Fanless Embedded Box PC
The BOXER-6839-CFL is an expandable fanless box PC with 8th/9th Gen Intel Core and Xeon processors for industrial and AI applications.
Socket-type Intel Core i3 to i9 or Xeon E-2124G
Up to 64 GB DDR4 with ECC or non-ECC support
Two 2.5″ SATA drive bays
Four GbE LAN, eight USB 3.2 Gen 1 and six COM ports
Two HDMI outputs and 8-bit DIO
PCIe x4 and PCI slots for frame grabbers or AI cards
10–35 VDC input, -20°C to 55°C operating range
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | PCI, PCIe |
| Storage | SSD |
| Temperature range | -20°C ~ 55°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Core 8th–9th Gen, Intel Xeon E-2124G |
| Max memory | 64GB |
| Supply voltage | 10–35 VDC |
| Operating system | Linux, Windows |
| Mounting | Wall |
| Dimensions | 264 x 156 x 125 mm |
| Weight | 4,5 kg |
| Shock | 50 G |
| Vibration | 5 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 4 |
| USB ports | 8 |
| COM ports | 6 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 2 |
| Form factor | 2.5'' |
| Cooling | Fanless |
