DRPC-230-ULT5 DIN-rail mounted fanless PC
DRPC-230-ULT5 DIN-rail mounted fanless PC

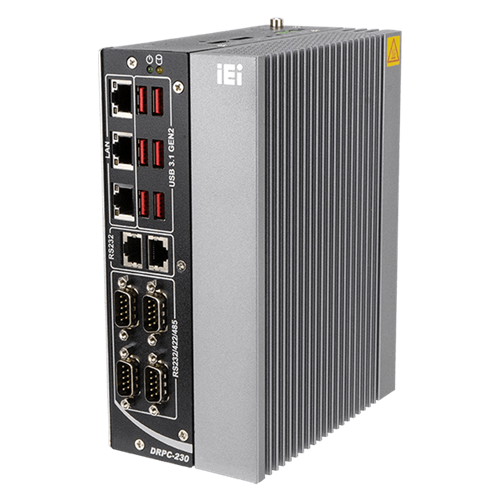

The IEI DRPC-230-ULT5 is a fanless DIN-rail PC with Intel Core i5-8365UE or Celeron 4205U for AI and PoE applications.
DDR4 memory up to 32 GB, 8 GB as standard
Dual display via HDMI and DisplayPort
Six USB 3.2 Gen 2 ports, RS-232/422/485 serial ports
2.5-inch SATA HDD/SSD bay
Supports accelerator cards and PoE cards up to 60 W
Modular second layer for I/O expansion
12–24 VDC input, -20 to 70 °C, MIL-STD-810
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Expansion slots | M.2, Mini PCIe, PCIe |
| Storage | M.2, SSD |
| Temperature range | -20°C ~ 70°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Supply voltage | 12–24 VDC |
| Processor | Intel Celeron 4205U, Intel Core i5-8365UE |
| LAN ports | 3 |
| USB ports | 4, 6 |
| Display outputs | 2 |
| COM ports | 6 |
| Serial standard | RS-232, RS-422, RS-485 |
| Cooling | Fanless |
| Material | Aluminium |
| Dimensions | 127 x 150 x 190 mm, 81 x 150 x 190 mm |
| Weight | 2,9 kg, 3,2 kg |
| Shock | 5 G |
| Approvals | MIL-STD-810 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Operating system | Linux, Windows |
| Mounting | DIN rail |
| Memory | 8GB |
