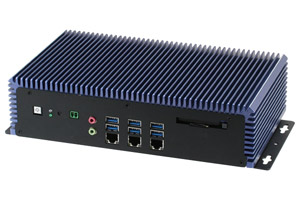

BOXER-6639 Fanless Embedded Box PC
BOXER-6639 Fanless Embedded Box PC
The BOXER-6639 is a compact fanless box PC with 6th/7th Gen Intel Core desktop processors for machine vision, control systems and digital signage.
Socket-type Intel Core i3, i5 or i7
Up to 32 GB DDR4 with ECC or non-ECC support
CFast and 2.5″ SATA, RAID 0/1 on selected models
Three Intel I210 GbE LAN ports
Two 4K HDMI outputs plus VGA
Six COM ports, USB 3.2 Gen 1 and optional 34-bit DIO
9–36 VDC input, -20°C to 55°C operating range
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| RAID | Yes |
| Storage | CF, mSATA, SSD |
| Temperature range | -20°C ~ 55°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Core 6th–7th Gen |
| Max memory | 32GB |
| Supply voltage | 9–36 VDC |
| Operating system | Windows |
| Mounting | DIN rail, Wall |
| Dimensions | 264,2 x 66,5 x 156,2 mm |
| Weight | 3 kg |
| Vibration | 2 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 3 |
| USB ports | 6 |
| COM ports | 6 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 3 |
| Form factor | 2.5'', CFast |
| Cooling | Fanless |
