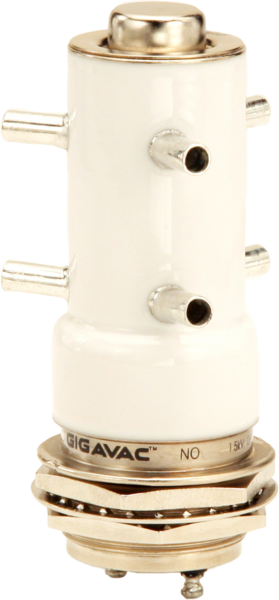

G2SPD High Voltage Relay Double change over (2xCO) 15kV
G2SPD High Voltage Relay Double change over (2xCO) 15kV
G2SPD is a double change-over (DPDT) high voltage relay rated 15 kV, for industrial, energy and RF circuits needing two switched paths.
Rated 15 kVDC and 15 kVAC
Carries 50 A continuous, AC or DC
Low, stable contact resistance and low voltage drop
Low loss in RF circuits
Operating temperature -55 °C to +125 °C
Coil 12 or 26.5 VDC, 20 ms response time
Panel mounting in any axis, solder or threaded HV connections
Additional information
| Coil Voltage | 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 15 kVAC, 15 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Continuous current | 50 A AC, 50 A DC |
| Contact config | Change over (CO), DPDT |
| Temperature range | -55°C ~ 125°C |
| Mounting | Panel |
| Weight | 160 g |
| Vibration | 10 G |
| Response time | 20 ms |
