G13 High Voltage Relay Double change over (2xCO) 15kV
G13 High Voltage Relay Double change over (2xCO) 15kV

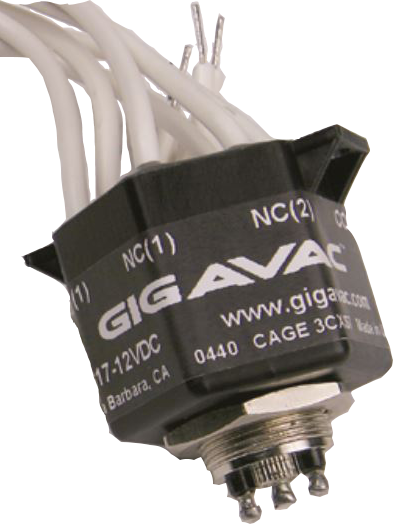

G13 is a double change-over (DPDT) high-voltage relay for 15 kV AC or DC that switches two circuits from a single coil signal.
15 kV AC or DC, 10 A continuous current
Linked contacts allow one set as auxiliary feedback
Durable tungsten contacts improve load switching
Operating temperature -55 °C to +85 °C
Coil voltages 12, 26.5 or 115 VDC
Insulated flying leads, custom lengths available
Mounts in any axis, 140 g, 1 million cycles
Additional information
| Coil Voltage | 115 VDC, 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 15 kVAC, 15 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Temperature range | -55°C ~ 85°C |
| Contact config | Change over (CO), DPDT |
| Continuous current | 10 A AC, 10 A DC |
| Weight | 140 g |
| Vibration | 10 G |
| Response time | 15 ms |
| Shock | 50 G |
