G22 High Voltage Relay Normally open (NO) 25kV
G22 High Voltage Relay Normally open (NO) 25kV

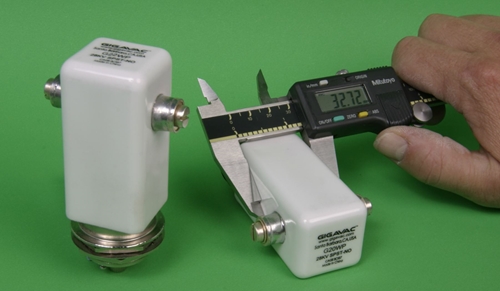

G22 is a vacuum normally open SPST high-voltage relay for 25 kV AC or DC, designed for make and break load switching.
25 kV AC or DC, 65 A continuous current
Tungsten contacts for better load switching
Operating temperature -55 °C to +125 °C
Coil voltages 12, 26.5 or 115 VDC
Panel mounting in any axis, 342 g
Threaded HV connections simplify installation
2 million mechanical cycles
Additional information
| Coil Voltage | 115 VDC, 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 25 kVAC, 25 kVDC |
| Mechanical cycles | 2.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Temperature range | -55°C ~ 125°C |
| Contact config | Normally open (NO), SPST |
| Continuous current | 65 A AC, 65 A DC |
| Mounting | Panel |
| Weight | 342 g |
| Vibration | 10 G |
| Response time | 18 ms |
| Shock | 30 G |
