G2L High Voltage Relay Latching (CO) 15kV
G2L High Voltage Relay Latching (CO) 15kV

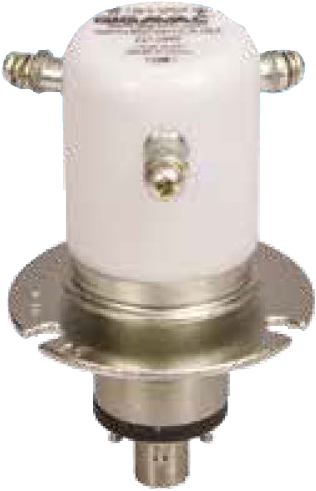

G2L is a latching change-over high voltage relay from Gigavac for 15 kV that holds its position without continuous coil power.
15 kVDC and 15 kVAC, 50 A continuous current
Low, stable contact resistance and low voltage drop
Low loss in RF circuits
Operating temperature -55 °C to +125 °C
Latching coil 26.5 VDC, switched by a momentary pulse
Flange or panel mounting in any axis, weight 84 g
Solder or threaded HV connections
Additional information
| Coil Voltage | 26,5 VDC |
|---|---|
| Max system voltage | 15 kVAC, 15 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Temperature range | -55°C ~ 125°C |
| Contact config | Change over (CO), Latching |
| Continuous current | 50 A AC, 50 A DC |
| Mounting | Flange, Panel |
| Weight | 84 g |
| Vibration | 10 G |
| Response time | 15 ms |
| Shock | 50 G |
