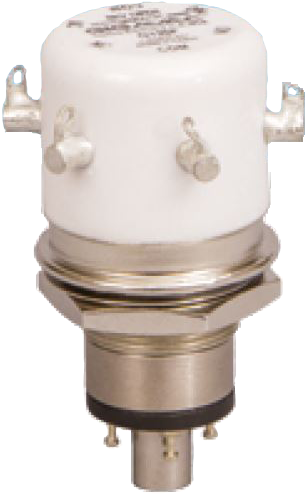

G12L High Voltage Relay Latching (2xCO) 8kV
G12L High Voltage Relay Latching (2xCO) 8kV
G12L is a latching change-over high voltage relay rated 8 kV, for industrial and energy switching without continuous coil power.
Rated 8 kVDC and 8 kVAC
Carries 10 A continuous, AC or DC
Durable tungsten contacts improve load switching
Operating temperature -55 °C to +125 °C
26.5 VDC latching coil, user interchangeable coils
Panel mounting in any axis, 71 g
1,000,000 mechanical cycles, 15 ms response time
Additional information
| Coil Voltage | 26,5 VDC |
|---|---|
| Max system voltage | 8 kVAC, 8 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Temperature range | -55°C ~ 125°C |
| Contact config | Change over (CO), Latching |
| Continuous current | 10 A AC, 10 A DC |
| Mounting | Panel |
| Weight | 71 g |
| Vibration | 10 G |
| Response time | 15 ms |
| Shock | 30 G |
