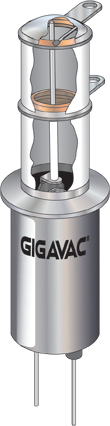

G41A High Voltage Relay Normally open (NO) 5kV
G41A High Voltage Relay Normally open (NO) 5kV
A single stationary contact and a moveable contact furnish a simple on-off configuration.
Forms include normally open, NO, and normally closed, NC. Normally open relays provide voltage isolation until coil power is applied. With coil power applied there is continuity through the relay contacts. Normally closed relays provide continuity through closed contacts until coil power is applied where the relay contacts open providing isolation.
GIGAVAC offers several design styles including High Voltage and RF reed relays along with traditional ceramic vacuum and gas filled High Voltage Relays. Each of these relay design types offer unique advantages depending on the application.
G41A RF efficient design offers high power handling in a small package.
Tungsten contacts improve hot load switching.
Contact GIGAVAC Applications Support for load capability.
Can be mounted in any position, any axis.
Meets or exceeds standards set in MIL-R-83725.
Additional information
| Coil Voltage | 115VDC, 12VDC, 26,5VDC |
|---|---|
| Contact function | Normally open (NO) |
| Contacts | SPST |
| Max current | 30A |
| Max system voltage | 5kV |
| Mechanical cycles | 2.000.000 |
| Sector | Factory Automation, Infrastructure and Energy |
