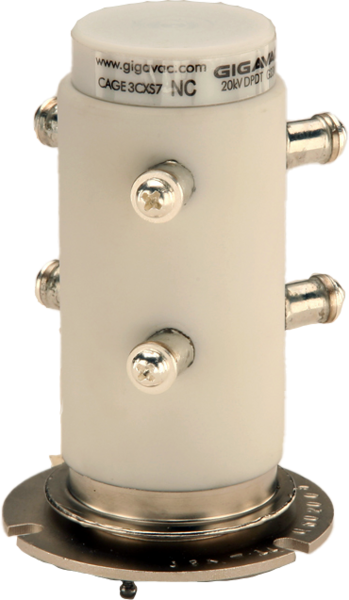

G24 High Voltage Relay Double change over (2xCO) 20kV
G24 High Voltage Relay Double change over (2xCO) 20kV
G24 is a gas-filled double change-over (DPDT) high voltage relay rated 20 kV, controlling two circuits with a single coil signal.
Rated 20 kVDC and 20 kVAC
Carries 30 A continuous, AC or DC
Tungsten/moly contacts for optimal load switching
Gas dielectric gives low, stable leakage current
Operating temperature -55 °C to +125 °C
Coil 12 or 26.5 VDC, 30 ms response time
Flange mounting in any axis, 380 g
Additional information
| Coil Voltage | 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 20 kVAC, 20 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure & Energy |
| Continuous current | 30 A AC, 30 A DC |
| Contact config | Change over (CO), DPDT |
| Temperature range | -55°C ~ 125°C |
| Mounting | Flange |
| Weight | 380 g |
| Vibration | 10 G |
| Response time | 30 ms |
| Shock | 50 G |
